Upload plans
Bring in PDFs or high-resolution images and turn them into measurable sheets.
Offline blueprint measurement

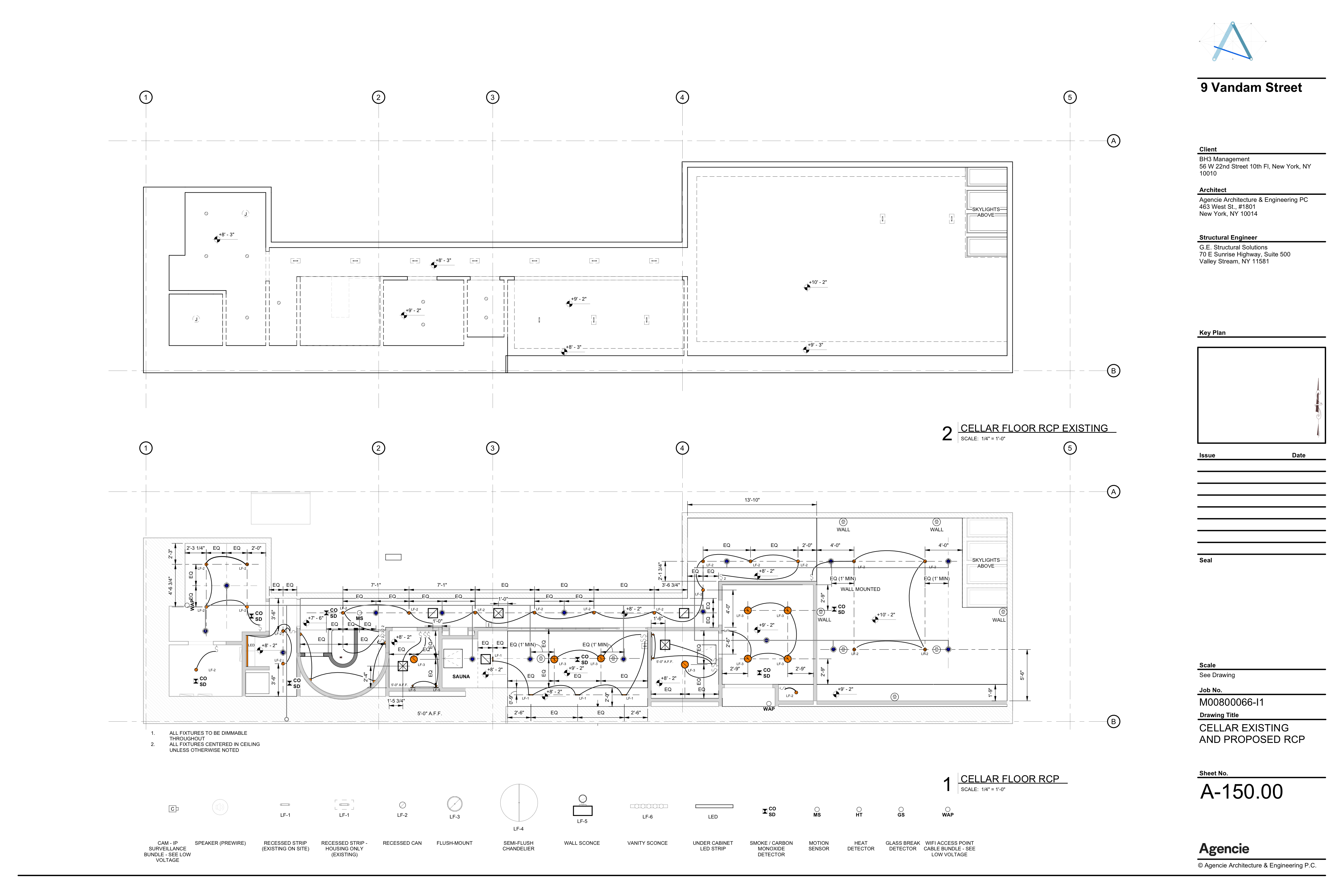

Measure electrical plans from the job site.
ScaleTrace helps electricians upload PDF plans, calibrate scale, trace conduit runs, measure device spacing, save labels, and keep working when the site has no signal.
Workflow
Upload, calibrate, trace, save.
Set scale
Use a printed scale or two known points to convert pixels into real-world feet and inches.
Trace runs
Tap point-to-point distances or multi-segment paths for conduit, lighting, panels, and devices.
Keep records
Save measurement labels, review work by sheet, and export project data for handoff.
Built for electricians
Focused on measuring existing plans, not drawing rooms from scratch.
ScaleTrace is for field electricians, foremen, solo contractors, estimators, and apprentices who need fast, accurate answers from the plans they already have.
Measure-from-PDF
Mobile-first
Offline-ready
Electrician-specific
